At this time, we have the program incorporated into nwmapmaker.pl as a "resolution enhancement option". This option performs downscaling
of PRISM-derived degree-day maps for the 5-state Northwestern US. The downscaling now takes 1:15 (1 minute 15 second or about 1.5 KM) heat unit data down to 0:09 (9 second) resolution using USGS GTOPO30 DEM (30 second elevation, about 580 meter resolution) and 360m DEM. This is approximately a 16 fold improved resolution, and does improve both *relative* and *absolute* precision and accuracy, as well as the readability, of the degree-day maps. The method uses a moving window 5x5 weighted simple linear regression. In addition, it has a) ability to ignore data beyond map edges, and b) a threshold r-value with "fail-back" to the non-downscaled value (currently used at r=0.15). Both distance-weights and threshold r-values are user-determined and set.

This program may provide a tool for other downscaling needs to provide an alternative to gaussian smoothing.

A brief outline of the process for computing PRISM-derived degree-day maps without the downscaling step is available from /wea/avgmapexp.html, and documentation for using the mapmaker application is available from /wea/mapmkrdoc.html. Please review.

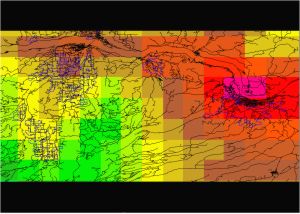

Fig. 1. Initial PRISM-derived DD map, 4 km (corrected using near-realtime site data) |

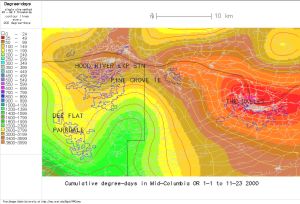

Fig. 2. Final (gaussian-smoothed) DD map, 500 m (as available from mapmaker.pl web application with the default, "original resolution" option selected) |

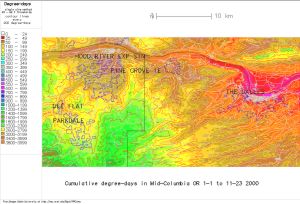

Fig. 3. New downscaled DD map, 100 m (downscaled using r.downscale.pl, no additional gaussian smoothing, this based on USGS 30m DEM, no longer available at mapmaker.pl) |

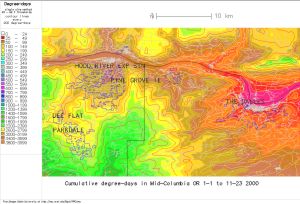

Fig. 4. New downscaled DD map, 500 m (downscaled using r.downscale.pl, with additional gaussian smoothing, based on USGS GTOPO30 DEM, now available at mapmaker.pl as the "resolution enhancement" option) |

- Starting with a PRISM-derived climate parameter map (degree-days) at the low resolution (2.5 minute or roughly 4km), an r.mapcalc process is run to compute up to 5x5 cell local weighted least squares regressions for the parameter such as degree-days (y) vs. elevation (x). The weights may be set by the user, such as using 9, 2, and 1 for weights for distances of 0, 1, and 2 cells from the center cell, which is a rough integer equivalent of 1/(distance squared). Preliminary tests indicate that this weighting may produce better final results than wts such as 3, 1.5, and 1 or 1, 1, and 1. From this step in the analysis, new maplayers are computed at the 4 km resolution, including SSXX, SSYY, SSXY, B1 (slope), B0 (intercept), r (correlation coefficient), and residuals. Before going further, these statistics may then be checked to assure significant correlations and watch for regional anomolies, etc. Also (version for GRASS 5.0x only), rth may be set to locally reject the regression model if r is too low.
- The resolution is then changed (g.region) to a higher value, such as 0:09 minutes (9 seconds or ca. 500m). Note that for the examples shown above, the resolution was set to 9 seconds although a much higher resolution elevation layer (30m) was used. GRASS merely samples the midpoint of a higher resolution maplayer for analyses. Note that this is a potential source of some error in this analysis.
- At this higher resolution, r.mapcalc is then used to compute expected y values around another 5x5 cell area, using the higher resolution elevation maplayer for x values. A weighted average is computed to provide a smoothed expected y value. This avoids a "posterizing" artifact that would occur without using a 5x5 cell area. A 5x5 average is close to ideal for smoothing when the downscaling factor is close to 8 to 1 (4km to 500m). A larger cell matrix such as 7x7 (not available for this version) could be more appropriate for a greater downscaling factor such as 12 to 1. Setting the weight values to achieve a 3x3 cell average may be more appropriate for a downscaling factor of 5 to 1. Tests have not yet been conducted to determine what the default weighting factors should be. They were set to 1, 1, and 1 for the example shown above. It is likely that 3, 1.5, and 1 would be more appropriate (to approximate a 1/distance relationship).
- A minimum r-squared value (default set to 0.08) is used to avoid problems of poorly fitted models. This threshold is checked for each local regression, and if not met, the original (coarse) resolution value is applied. This is especially effective in flat regions where there is no basis to build a local regression equation. This threshold also has the benefit of avoiding anomalies and producing generally good results.
- Weight values for both model building and parameter (degree-day) estimation may be optimized and set separately, and are not required to be integers.
- Edge effects are avoided by substituting the center cell in place of values that lie outside the current region (currently detected where the parameter [ex. degree-days] <= 0.0). This method produces good looking results, but would not work where subzero values normally occur, and results in additional weighting placed on the center cell for all edges of the map.

r.downscale.pl: Perl script to use r.mapcalc and GWR to downscale from low to high resolution using 5 x 5 local weighted regressions between variables like rainfall or temperature (dep. variable) and elevation (indep. variable). The program expects to be run twice: Once at the lower resolution to build models using calc=BUILD, then at a higher resolution using calc=EST to calculate new high resolution values. Example usage: GRASS >g.region res=0:02:30.00 # set lower res GRASS >r.downscale.pl input=H_50 elev_lo=lodem calc=BUILD # build model GRASS >g.region res=0:00:09.00 # set higher res GRASS >r.downscale.pl elev_hi=DEM30m elev_lo=lodem input=H_50 output=HI_50 calc=EST # estimate For help: --help or -h print this message and exit. --keys or -k print the list of keys and exit. --defaults or -d print the list of keys and defaults and exit. Other arguments are interpreted as parameter=value pairs Notes: For GRASS 4.x, all stats are scaled up: B1 (x1000), B0 (x100), r (x100), residuals (x100). Keep this in mind when checking resultsRunning the script as r.downscale.pl -d (show defaults) results in this summary:

# #parameter =default # description (all filenames are GRASS raster maplayers) #-------------------------------------------------------------------------------- calc =BUILD # req: function performed (BUILD or EST) input =H_50 # req: BUILD & EST low res filename to be downscaled elev_lo =us_25m_dem # req: BUILD low res elev filename elev_hi =DEM30m # req: EST high res elev filename output =HIDD5d # req: EST output filename with downscaled values b1 =BONE # opt: BUILD & EST slope filename b0 =BZERO # opt: BUILD & EST intercept filename rval =RVAL # opt: BUILD corr. coeff. (r) filename resid =RESID # opt: BUILD residual (Yi - YHATi) (x10) filename ssxy =SSXY # opt: BUILD intermediate filename SSXY (sum of squares xy) ssxx =SSXX # opt: BUILD intermediate filename SSXX (sum of squares xx) ssyy =SSYY # opt: BUILD intermediate filename SSYY (sum of squares yy) d0 =1.0 # opt: BUILD wt value for 5 x 5 center cell d1 =1.0 # opt: BUILD wt value at dist. = 1 cell from center d2 =1.0 # opt: BUILD wt value at dist. = 2 cells from center e0 =8.0 # opt: EST wt value for 5 x 5 center cell e1 =2.0 # opt: EST wt value at dist. = 1 cell from center e2 =1.0 # opt: EST wt value at dist. = 2 cells from center rth =0.08 # opt: EST minimum acceptable local rsqr from build (not in orig version) #--------------------------------------------------------------------------------

For the inclusive data set, the correlation between the 4km DDs (sampled from the maplayer shown in Fig. 1 using GRASS command r.what) and actual site DDs is very good, r=0.97, reflecting the fact that DD maps were corrected using these site data. The correlation is not perfect primarily because site location precision could be improved (see lat-long coordinates). Gaussian smoothing appears to slightly improve the correlation, to r=0.998. Downscaling using the described regression algorithm also produced a high correlation, r=0.973, indicating that the method does not appear biased or inaccurate. It is expected that improvements in location precision, and in selection of a more appropriate DEM maplayer, will help with future verifications.

In the case of the exclusive data set, as expected, none of the estimated DD totals are as highly correlated with the reference (site) calculated DDs. The corrected PRISM DDs at 4km resolution show good correlation, on average within 7% of the reference data set (r=0.673). This result can be expected given the lack of precision in spatial resolution. The DDs smoothed by a gaussian filter to 500m are better correlated, r=0.764, which reflects that gaussian smoothing can be helpful for point-specific readings. The gaussian-smoothed maps do not follow the higher resolution topography, however, whereas it is known that temperature gradients will follow a much higher elevation scale of better than 100-500 m (references). The preliminary results using the downscaling method support this fact, with a correlation that is further improved to r=0.810. Much better results would be expected in a jackknife validation, by building maps using all sites other than the site tested. Such an analysis would improve the overall accuracy of these DD maps, and further support the intuitive conclusion that higher resolution maps can only be meaningfully used in conjunction with a more densely distributed network of weather stations. Also, a more rigorous test could involve weather station networks located as transects along slopes.

Table 1. Verification and validation data for 4km, gaussian smoothing, and least squares downscale techniques used for producing degree-day maps in Figs. 1-3 above. Click on station names for location map of grower-run stations.

BUILD Model Results | ||||||||||||

Station | Station | Station | Actual | Elev | Elev | Est DD | Est DD | Est DD | Slope | Intercept | Corr. | Residual |

Longitude | Latitude | Name | site DD | 4km | 500m | 4km | 500m GAUSS | 500m Downscale | B1 | B0 | coeff. | Yi - Yhat |

1. Stations included from the analysis (verification data) | ||||||||||||

121:35:00.00W | 45:31:00.00N | PARO | 2647 | 600 | 528 | 2632 | 2591 | 2657 | -8.303 | 16793.34 | -.93 | -50 |

121:30:07.00W | 45:38:52.00N | PNGO | 2968 | 203 | 212 | 3123 | 2963 | 3189 | -11.403 | 20237.14 | -.94 | -96 |

121:31:01.00W | 45:41:00.00N | HOXO | 3410 | 203 | 135 | 3123 | 3315 | 3274 | -9.394 | 19639.10 | -.81 | 71 |

121:37:55.00W | 45:35:08.00N | DEFO | 2748 | 376 | 279 | 2751 | 2706 | 2953 | -9.060 | 18157.79 | -.86 | -62 |

121:12:05.00W | 45:36:01.00N | T_Dalles | 4265 | 182 | 69 | 4266 | 4335 | 4448 | -21.385 | 29003.83 | -.95 | 104 |

correlation: EST DD vs actual DD | 0.970 | 0.998 | 0.973 | |||||||||

2. Hood River stations excluded from the analysis (validation data) | ||||||||||||

121:34:37.51W | 45:40:13.37N | Annala | 3071 | 295 | 255 | 3065 | 3138 | 3098 | -8.908 | 19211.18 | -.81 | -7 |

121:33:52.44W | 45:38:34.73N | Oates | 3111 | 384 | 227 | 2899 | 3025 | 3102 | -10.203 | 19209.27 | -.91 | -14 |

121:31:01.16W | 45:41:07.18N | MCAREC | 3257 | 203 | 155 | 3123 | 3331 | 3249 | -9.394 | 19639.10 | -.81 | 71 |

121:29:31.02W | 45:40:13.00N | Moore | 2837 | 203 | 208 | 3123 | 3139 | 3224 | -10.023 | 20207.59 | -.84 | 13 |

121:31:10.18W | 45:36:29.17N | Nakamura | 3062 | 311 | 353 | 2725 | 2708 | 2926 | -10.420 | 19214.75 | -.92 | -94 |

121:36:34.70W | 45:31:06.31N | Klindt | 2635 | 671 | 511 | 2490 | 2602 | 2685 | -9.261 | 17388.52 | -.92 | -34 |

121:34:55.54W | 45:30:39.41N | Laurance | 2422 | 600 | 534 | 2632 | 2567 | 2650 | -8.303 | 16793.34 | -.93 | -49 |

correlation: EST DD vs actual DD | 0.673 | 0.764 | 0.810 |

References:

Fotheringham, A. S., C. Brunsdon, and M. Charlton. 2002. Geographically Weighted Regression – the analysis of spatially varying relationships. J. Wiley & Sons.269 pp.
